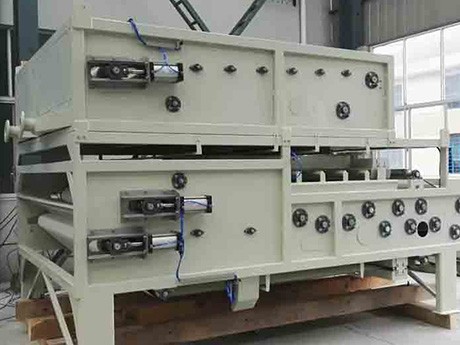

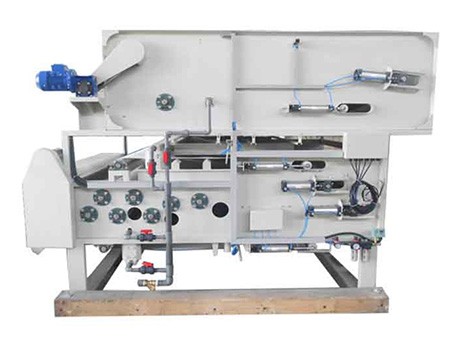

DNY-3 Belt Filter Press

Belt Width（mm）750-3000
Dry Solid(kg/hr)110~225、150~300、225~450、300~600、375~750、420~950
Cake Moisture(%)63~84.5
Power(HP)1.5-2.2
Weight(kgs)2570、2920、3590、4490、5520、6220

Advantages: 1. Automated operation, no labor required, low cost 2 . Automatic control, continuous operation; 3 . Easy Operation, easy maintenance Applications: Sludge dewatering for wastewater treatment, Such as: Foodstuff, Printing/Dyeing, Slaughter Sewage, Chemicals, Mining, Medicine, etc

DNY-3 belt filter press developed by Dazhang Filtration Equipment Co., Ltd is made of high strength material, which has the advantages of large capacity, high efficiency, long service life and other significant characteristics. DNY-3 belt filter press is widely used for continuous sludge dewatering in wastewater treatment engineering including papermaking, printing and dyeing wastewater, electroplating wastewater, leather sewage and other industries.

1)The main structure is made of stainless steel.

2)Adopt high quality filter cloth, with longer service life.

3)Low energy consumption, low speed, low noise, the noise value ≤ 75dB (A).

4)Sludge dewatering machine cloth offset correction adopts pneumatic mechanical adjustment, with high operation stability.

5)High operational safety.

6)The system adopts obviously humanized design, this kind of belt filter press has the advantages of convenient operation, simple maintenance.
