Automatic Hydraulic Stainless Steel Plate and Frame Filter Press for Fine Filtration

Filter area（m²）2-35
Plate Qty15-101
Working MethodAuto/Manual
Panel pulling methodQuick Open, etc.
Feed pressure（MPa）0.6
Drainage Methods Visible/Invisible

Advantages: 1. The whole machine is made of sanitary-grade stainless steel, which is high-temperature resistant, corrosion-resistant, and easy to clean. 2. PIC control, simple and convenient operation, stable operation; 3. Low loss, no leakage, safe, no odor. Applications: It is widely used in beer, gelatin, seaweed gum, soy sauce, vinegar, fruit wine, wine, health wine, sake, liquor, and coo

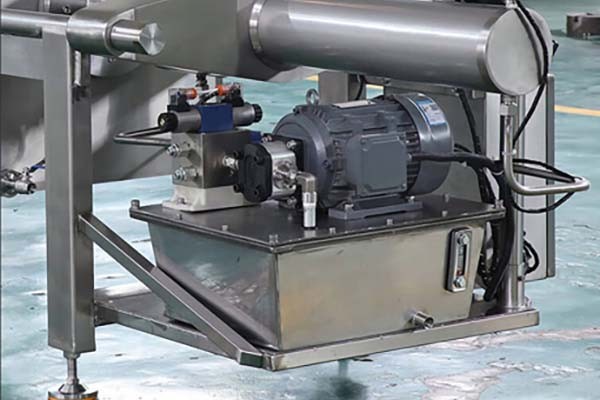

PLC-controlled hydraulic stainless steel plate and frame fine filter is made of 304 or 316 high-quality stainless steel materials. The filtration temperature can reach 180°C. This machine integrates coarse filtration and fine filtration, and is suitable for solid-liquid separation of various suspensions. Stainless steel filter presses are specially developed to meet the high requirements of hygiene and purity, and are especially suitable for solid-liquid separation in laboratories, fine chemicals, pharmaceuticals, herbal extraction, food, and cosmetics production.

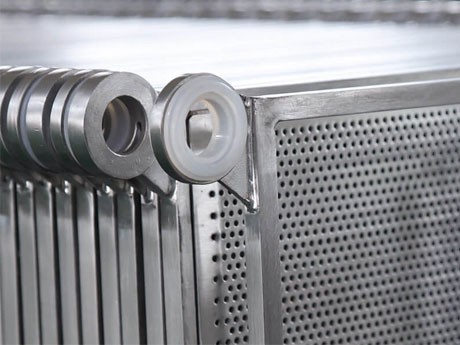

1)Frame material: food-grade stainless steel 304;

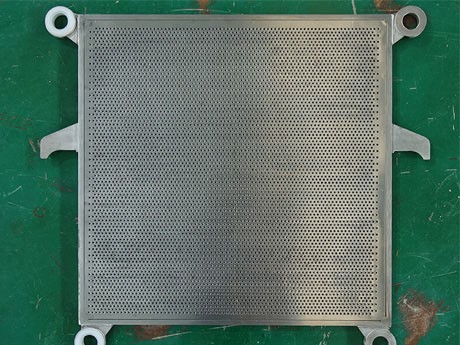

2)Plate frame material: food-grade stainless steel 304(Stainless steel 316 is optional.)
3)Seal ring material: white silicone rubber(Seal ring material is optional.);
4)Working pressure: < 0.4MPa;
5)Working temperature: < 180°C;
6)Applicable filter material: various thick filter cardboards, thin various filter papers, filter membranes, filter cloths, etc;
7)Filtration fineness: suitable for filter media from 200-mesh, 300-mesh filter cloth for coarse filtration to 0.22μm, 0.45μm for fine filtration, filter paper, filter membrane;
8)Cardboard fine filter: The plate and frame are pressed flat by plane, which is suitable for clamping thick filter cardboard, such as support plate, pre-filter plate, fine filter plate, sterilization plate, etc., with a thickness of 3-5mm.
