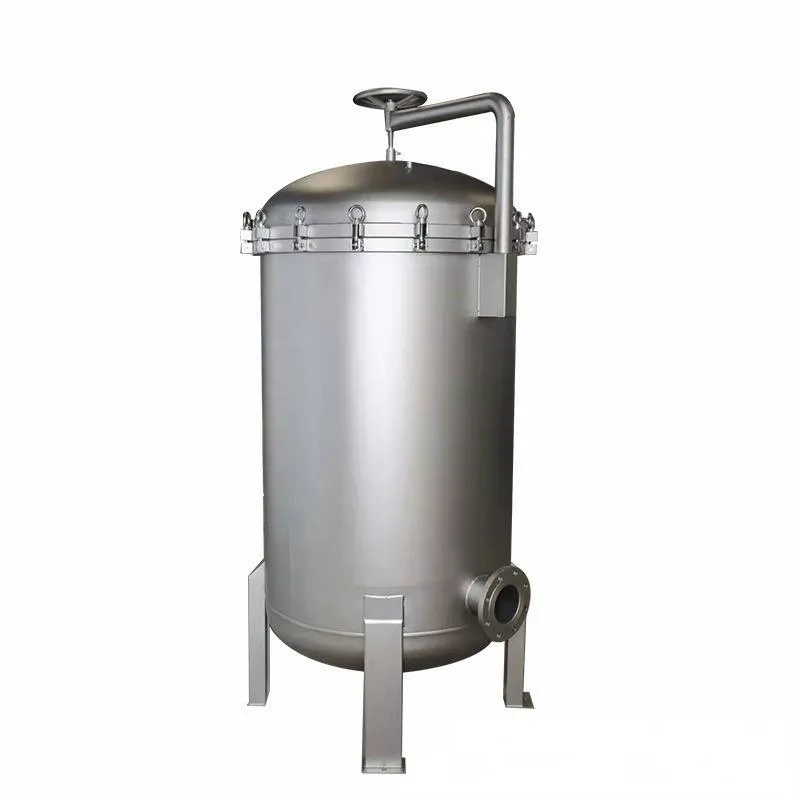

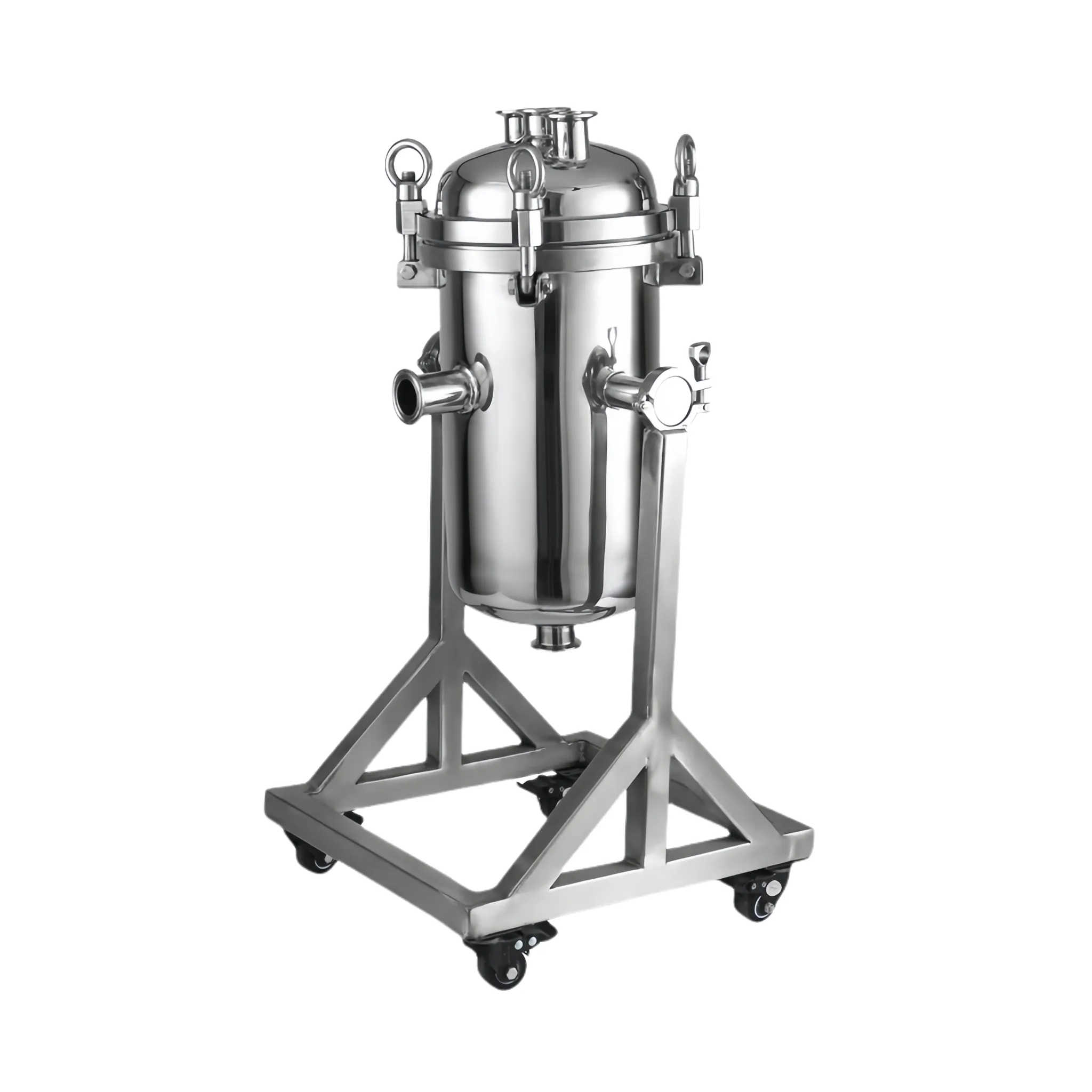

Cartridge filter

Inlet/Outlet（DN）DN20-DN100

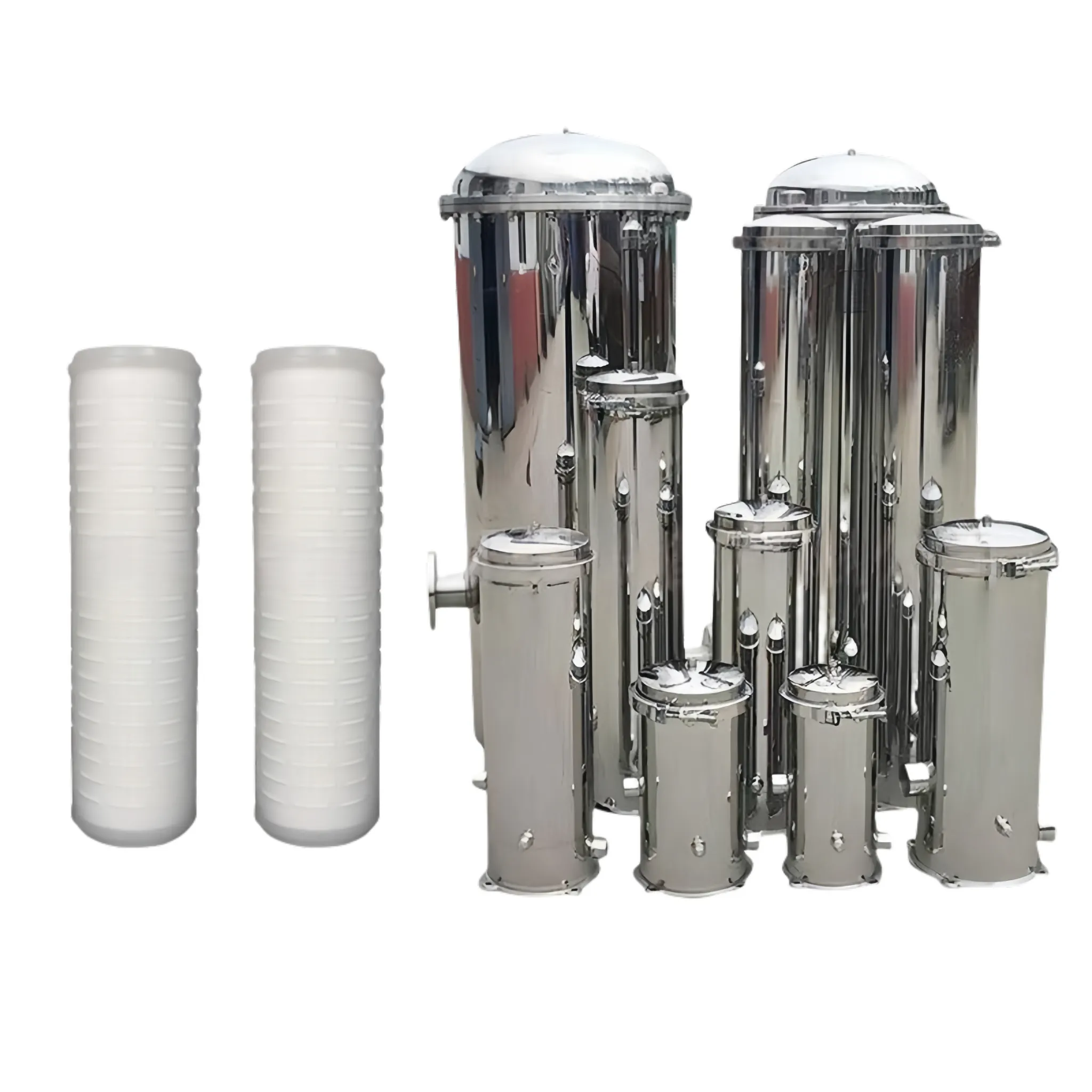

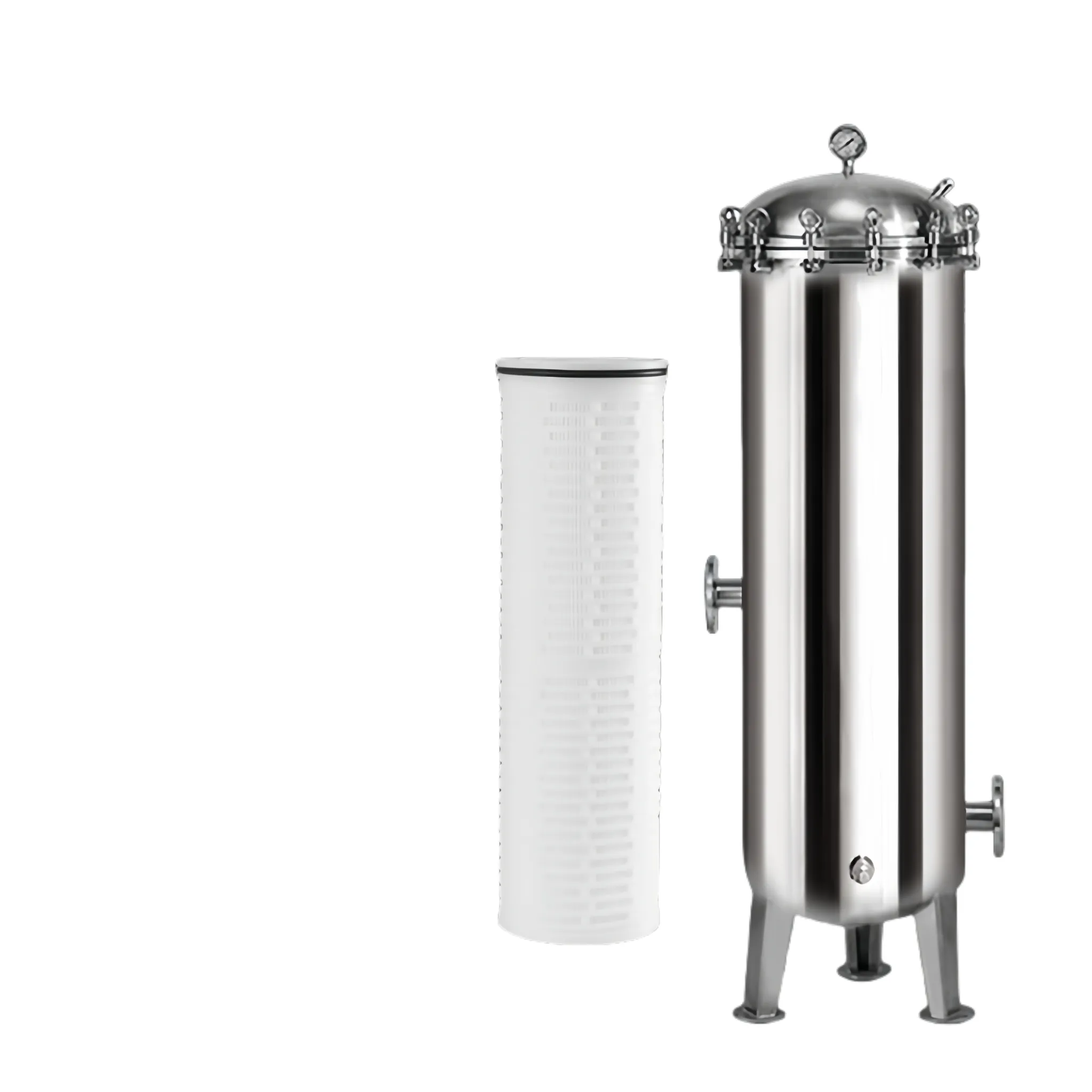

Product Instruction A cartridge filter (also named a precision filter), the housing is usually made of stainless steel. The filter uses a cartridge as the filtering medium. The cartridge can be: Melt Blow Cartridge/String Wound Cartridge/PP Folded Cartridge/ Nylon Membrane Cartridge/PES Cartridge/PTFE Cartridge. A different filtering element is selected according to the different filtered mater

Working Principle

The liquid will be fed into the filter from the inlet, then go through the cartridge from the external side to the inner side. Discharge from the outlet. While the filtering, impurities will be trapped by the cartridge, so that a filtering effect is realized.

Features

• Evenly distributed apertures ensure high filtering precision
• High cleanliness of cartridge material makes no secondary pollution
• Good chemical stability: Resists alkaline, acid, and chemical solvents
• Cost saving, low running cost, easy cleaning, and the cartridge can be changed

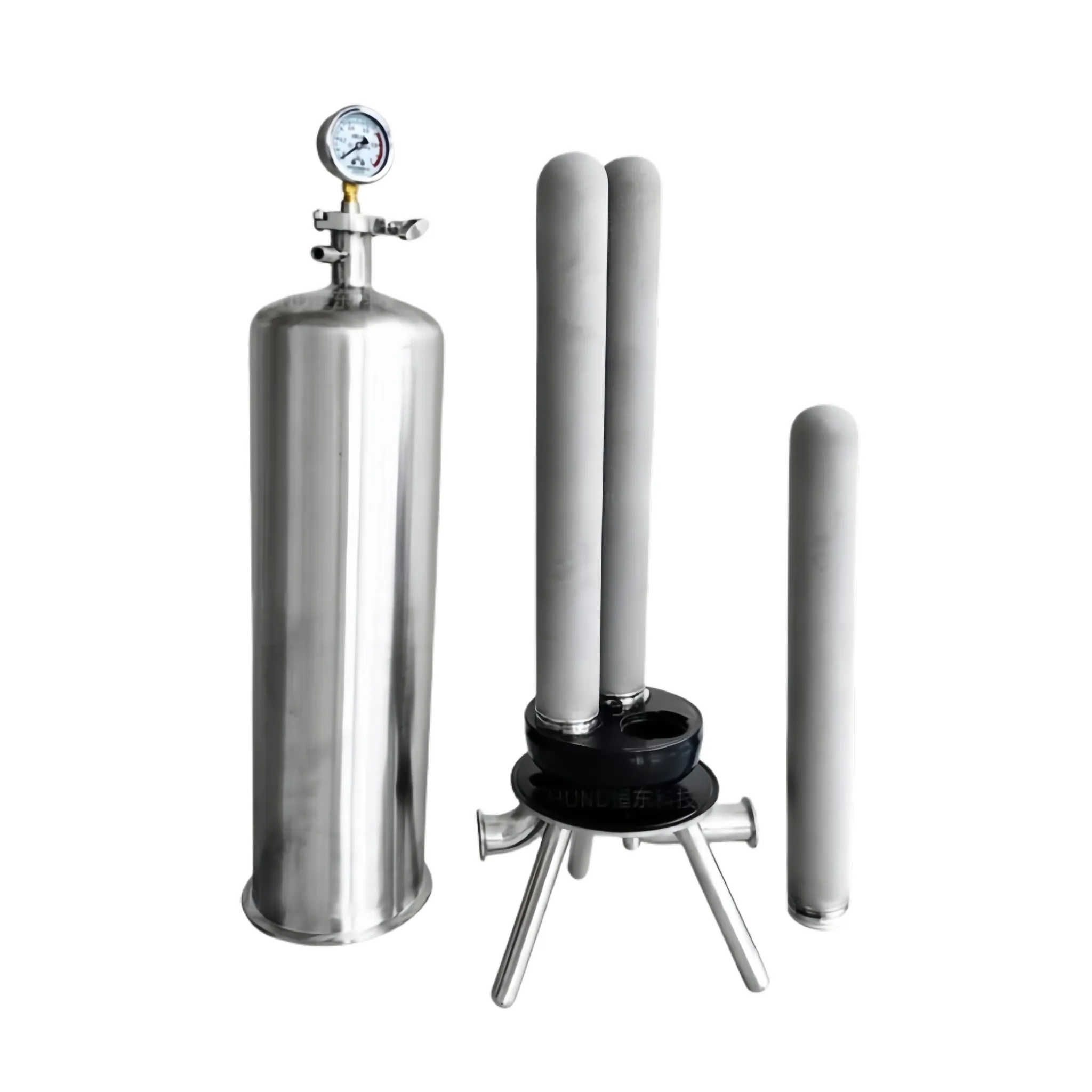

Titanium rod filter 316L. The shell is made of 316L stainless steel, and the inner filter element is a titanium filter tube. High temperature, high pressure, strong acid, strong alkali corrosion, the filter element can be recycled. The machine adopts the powder metallurgy method to process the metallurgical powder through high-temperature sintering to make the hollow filter pipe, which is widely used in the solid-liquid separation of food and beverage, pharmaceutical, chemical, and other industries, especially in the pharmaceutical industry, which is suitable for decarburization in the production line of large infusion injection.
