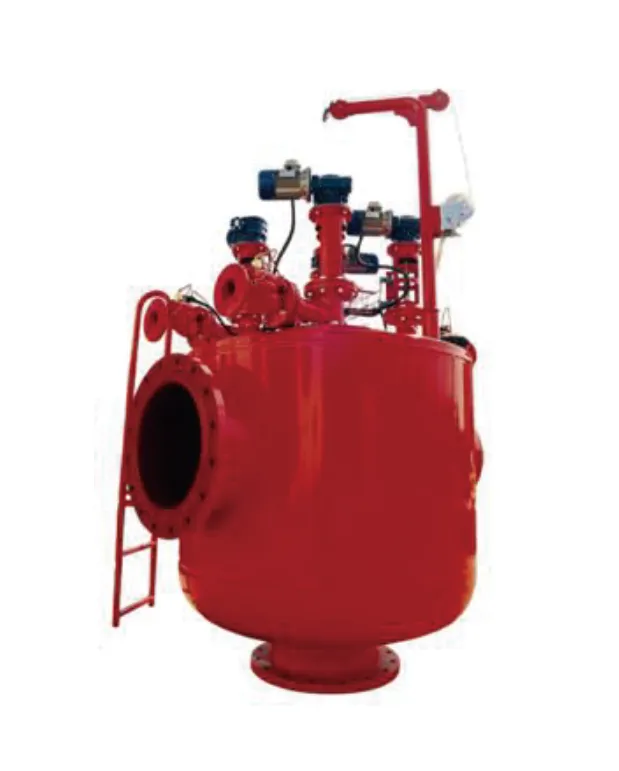

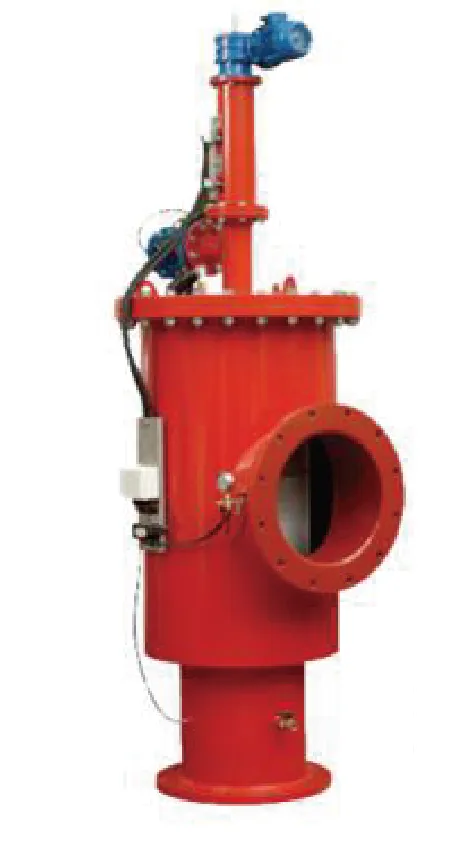

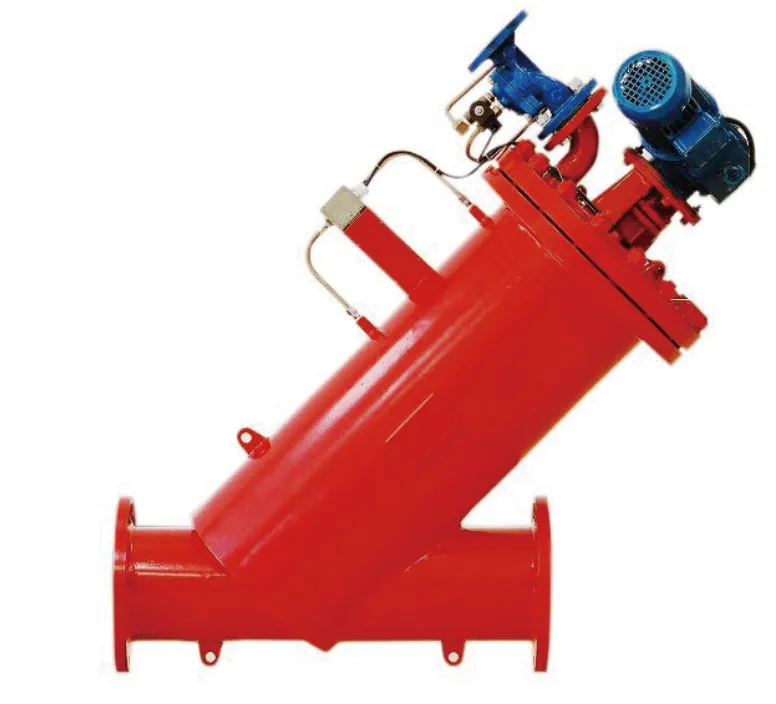

Intelligent automatic self-clean filter

Inlet/Outlet（DN）50-600
Weight（Kg）56-1038
Fitering Area（m²）710-42295
Capacity（t/h）19-2350

Product Instruction The automatic self-clean filter not only has the function to filter raw water, but it can also automatically clean the filter element. And while cleaning, the filtering process is continuous. Compared with the previous filters, this equipment has the advantages of higher automation, larger capacity, wider usage, and automatic self-cleaning.

Specifications

• Capacity: 20-2350 ㎥/h
• Max. Pressure: 0.1-1.6 MPa
• Pressure Loss: <0.081 MPa
• Max. Temperature: 95 °C
• Filtering Precision Range: 100-3000 ㎛
• Cleaning Water Consumption: < 1%
• Cleaning Time: 10-60 seconds
• CleaningControlType: PressureDifference/Time/Manual
• Controllnterface: DigitalDisplay/ScrewSwitch/Button Switch
• FilterScreen Type: S.S.316L Woven/Wedge-shape Mesh
• wedge-shape

Applications

It's widely used for the treatment of drinking water, construction circulating water, industrial circulating water, sewage, mining water, and also in various industries: iron, petroleum, electronics, and paper. Making plastic, automobiles, etc.
