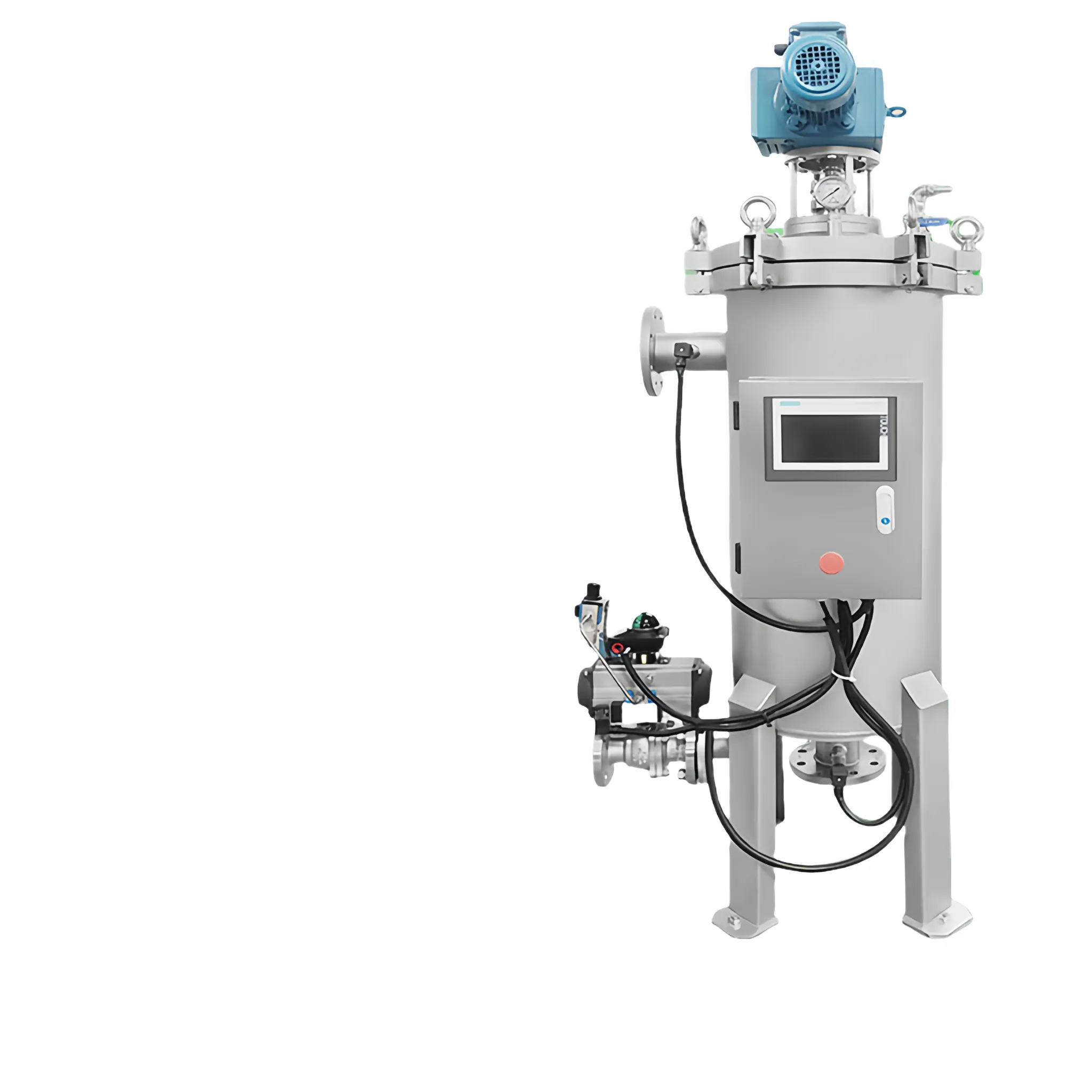

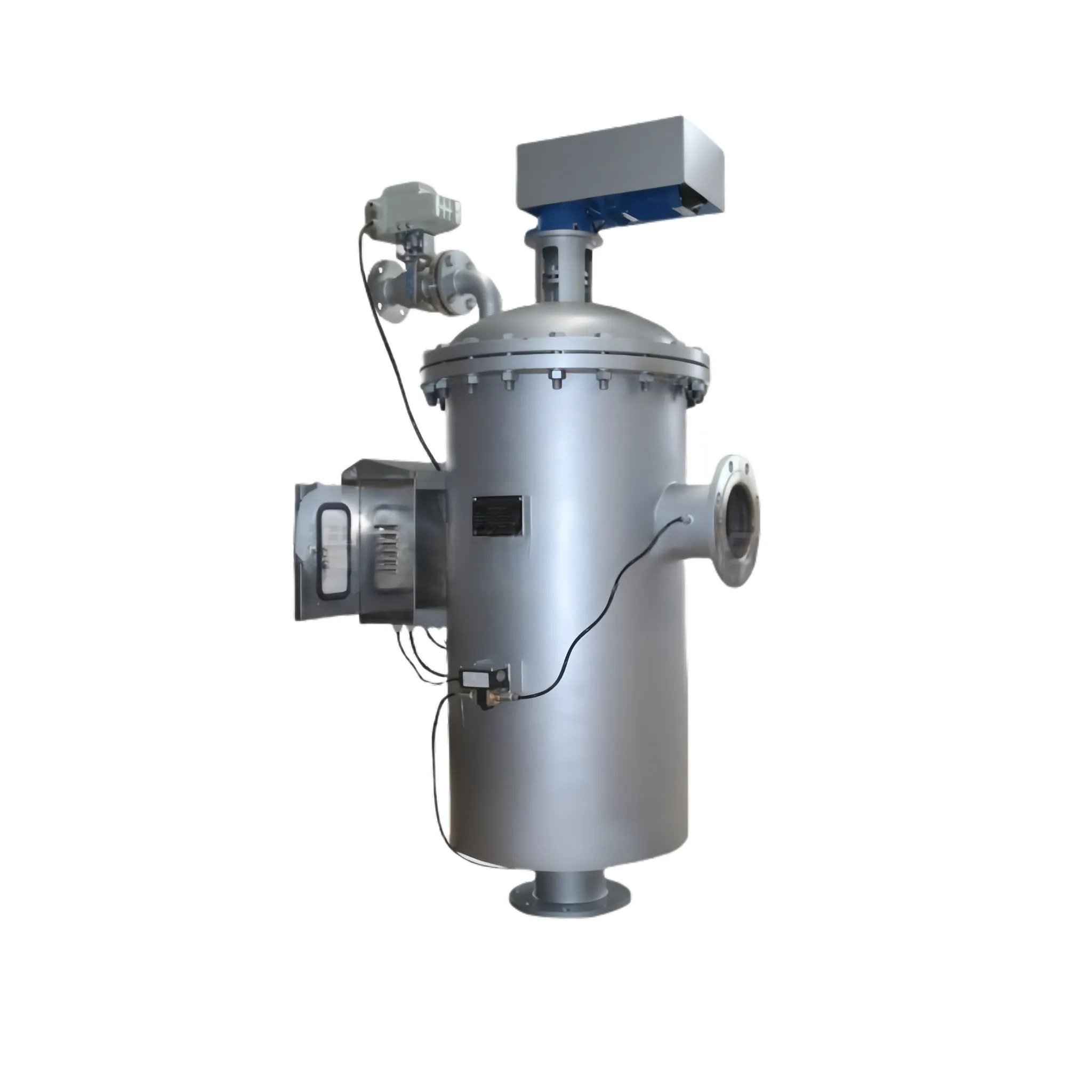

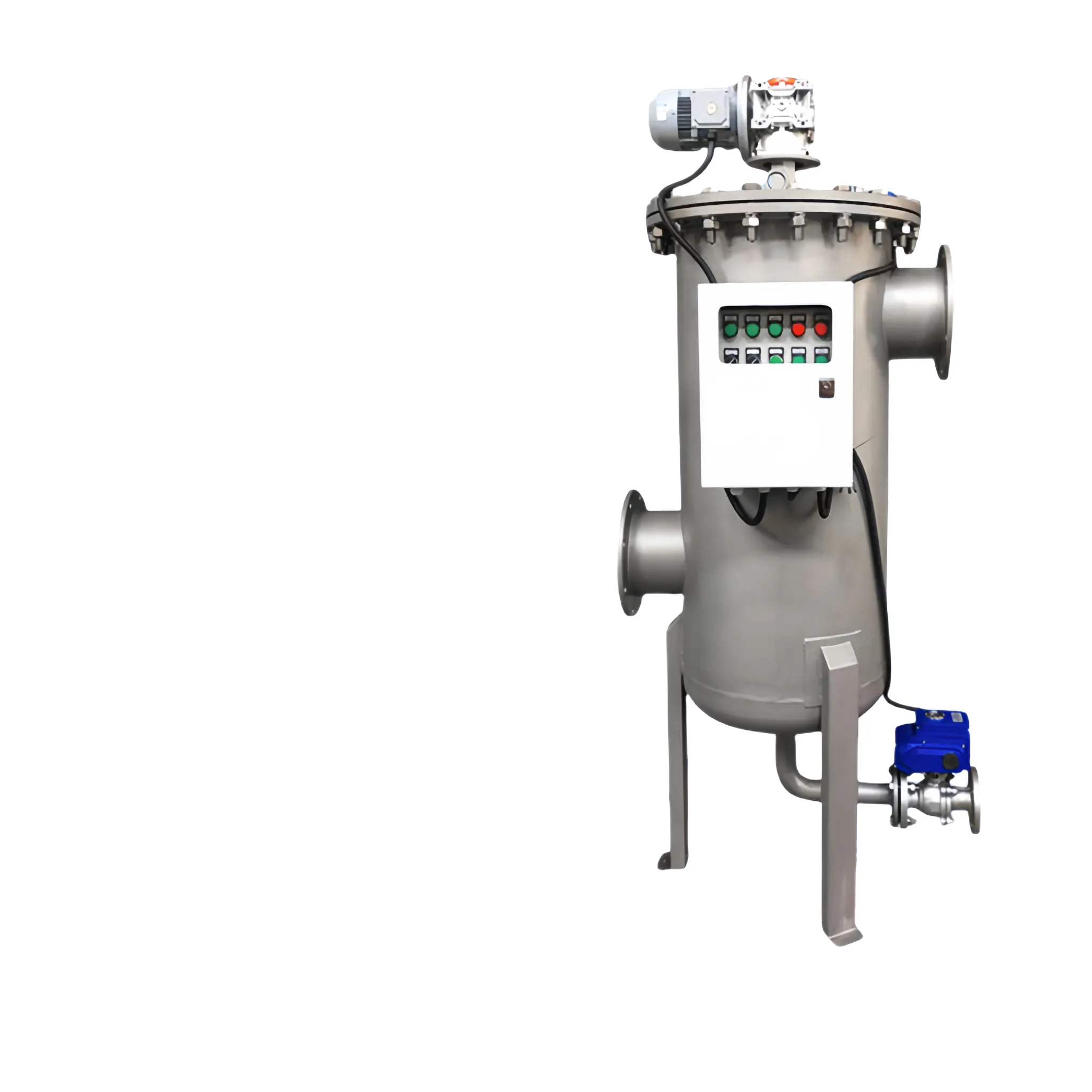

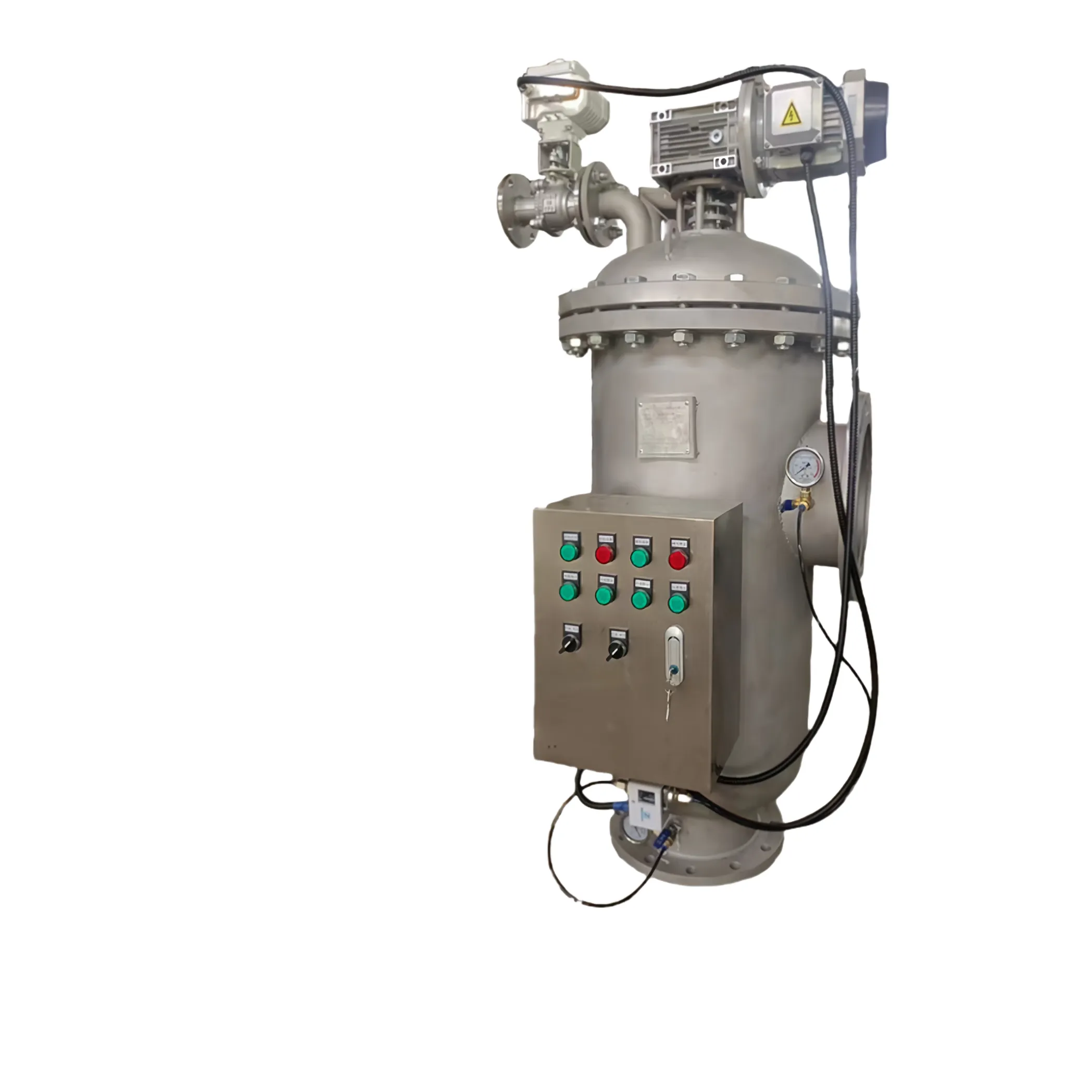

Other intelligent self-cleaning filters (Internal scraper/ external scraper/ brush-type/ angle through)

Product Instruction The automatic self-clean filter not only has the function to filter raw water, but also can automatically clean the filter element. And while cleaning, the filtering process is continuous. Compared with the previous filters, this equipment has the advantages of higher automation, larger capacity, wider usage, and automatic self-cleaning.

Specifications

• Capacity: 20-2350 ㎥/h
• Max. Pressure: 0.1-1.6 M Pa
• Pressure Loss: <0.081 M Pa
• Max. Temperature: 95 °C
• Filtering Precision Range: 100-3000 ㎛
• Cleaning Water Consumption: < 1%
• Cleaning Time: 10-60 seconds
• Cleaning Control Type: Pressure Difference/Time/Manual
• Control interface: Digital Display/Screw Switch/Button Switch
• Filter Screen Type: S.S.316L Woven/Wedge-shape Mesh/wedge-shape

Applications

It's widely used for the treatment of drinking water, construction circulating water, industrial circulating water, sewage, mining water, and also in various industries: iron, petroleum, electronics, and paper. Making plastic, automobiles, etc.
