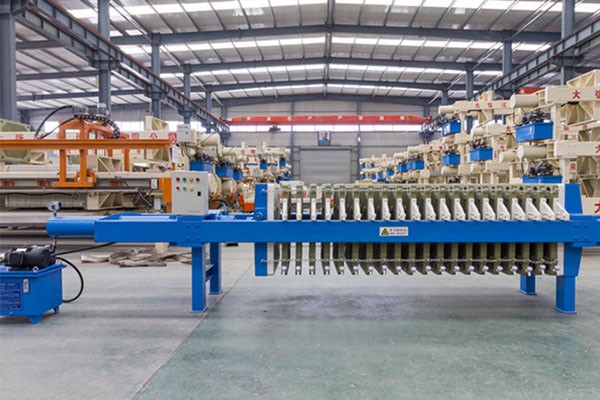

Once Open Filter Press

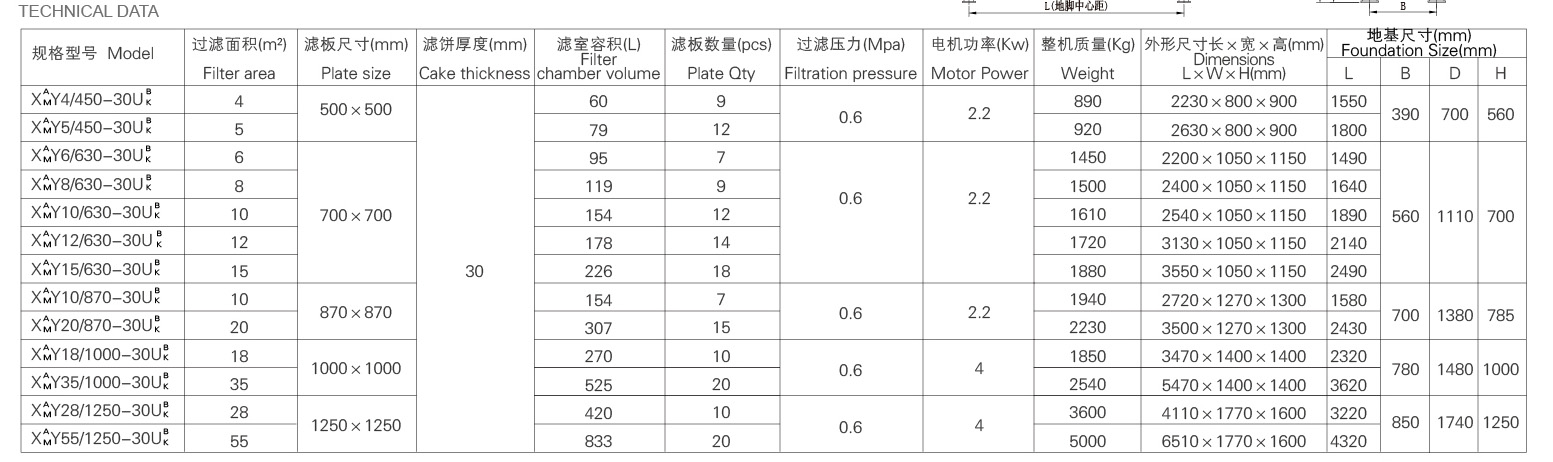

Filter area（m²）4-55
Filter Plate Specifications500、700、870、1000、1250
Working MethodAutomatic
Panel pulling methodQuick Open, etc.
Filtering pressure（MPa）0.6
Drainage Methods Visible/Invisible

Advantages: high efficiency, labor-saving
Disadvantages: suitable for a small quantity of filtering plates, no more than 30pcs. Plate type is recommended.

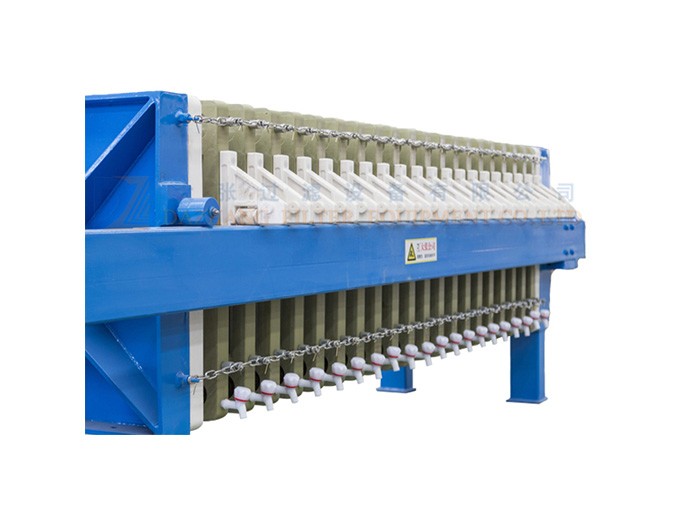

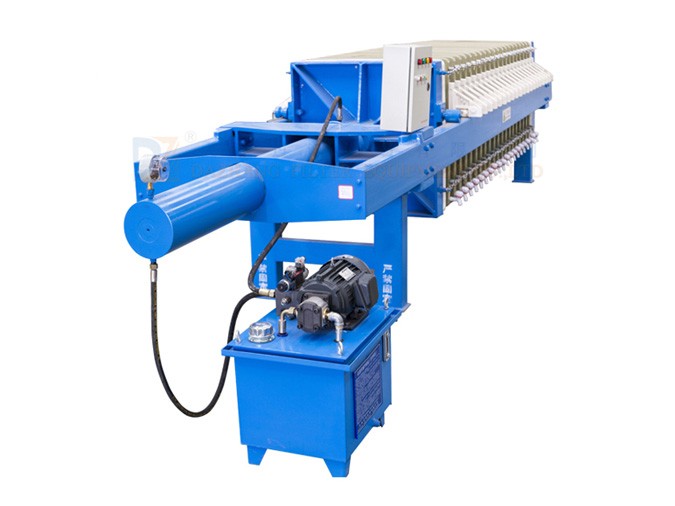

Once open, the filter press is equipped with an extended cylinder and beam, using an S.S. chain(or slide) for each

filter plate connection, to make all the filter plate openings at the same time while pressing the plate withdrawal. A vibration device is assembled for quick unloading and discharging material automatically.
