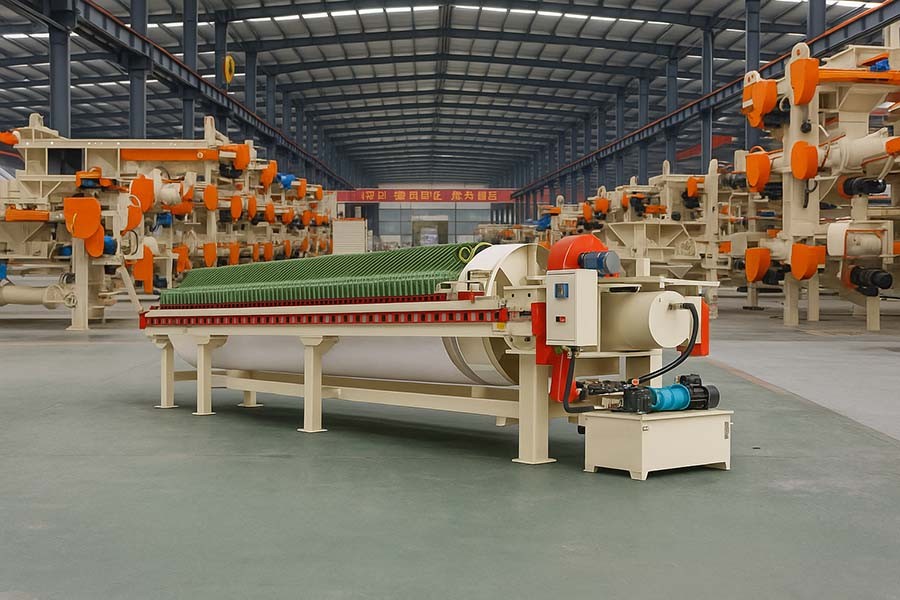

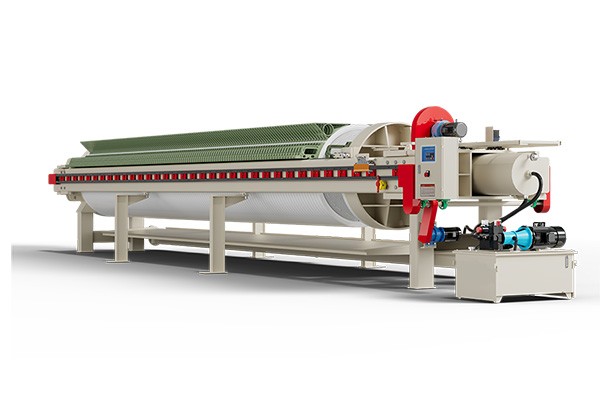

Round Filter Press
- 20-140
- 800、1000
- Auto/Manual
- Quick Open, etc.
- 0.6-3.0
- Visible/Invisible
Advantages:
-
High-pressure filtration for deeper dewatering
The round filter press is designed for high-pressure slurry filtration, making it suitable for materials that require stronger squeezing force and lower filter cake moisture. -
Lower cake moisture for mineral and ceramic slurry
It is especially suitable for kaolin, clay, ceramic slurry, red mud, concentrate, and tailings dewatering. The equipment helps reduce water content and improve filter cake handling efficiency. -

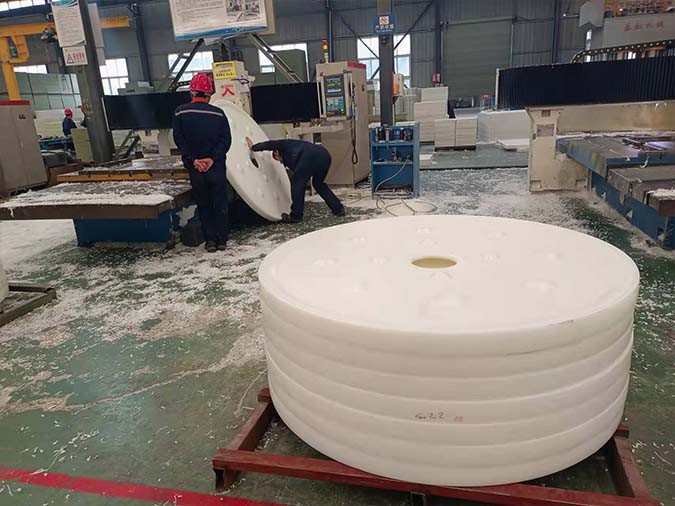

Circular filter plate with better mechanical strength
Compared with conventional square plates, the circular filter plate design provides better pressure resistance and mechanical performance under high-pressure filtration conditions. -
Quick-opening design improves discharge efficiency
The quick-opening plate pulling method helps shorten cake discharge time, improve operating efficiency, and reduce labor intensity. -
Suitable for high-solid and difficult-to-filter materials
The round filter press is suitable for mineral slurry and clay-based materials with high solid content or special filtration requirements. -
Flexible operation and drainage options
Automatic or manual operation can be selected according to project requirements. Visible and invisible drainage methods are available for different filtrate collection needs.
Selection Notes:
- Round filter press is mainly recommended for materials that require high-pressure filtration and deeper dewatering.
- Due to its circular filter plate design and strong pressure resistance, the round filter press is suitable for projects that need lower filter cake moisture and better cake forming performance.
- The complete system may include feed pump, hydraulic station, control cabinet, conveyor, filtrate collection system, and other auxiliary equipment. Enough space should be reserved for operation, cake discharge, and maintenance.
Applications:
Applicable industries: Round filter press is widely used for high-pressure solid-liquid separation in non-metallic minerals, ceramics, clay processing, mining, metallurgy, and environmental protection industries.
With high-pressure filtration and circular plate design, the round filter press helps achieve efficient slurry dewatering, lower cake moisture, easier filter cake transportation, and improved resource recovery.

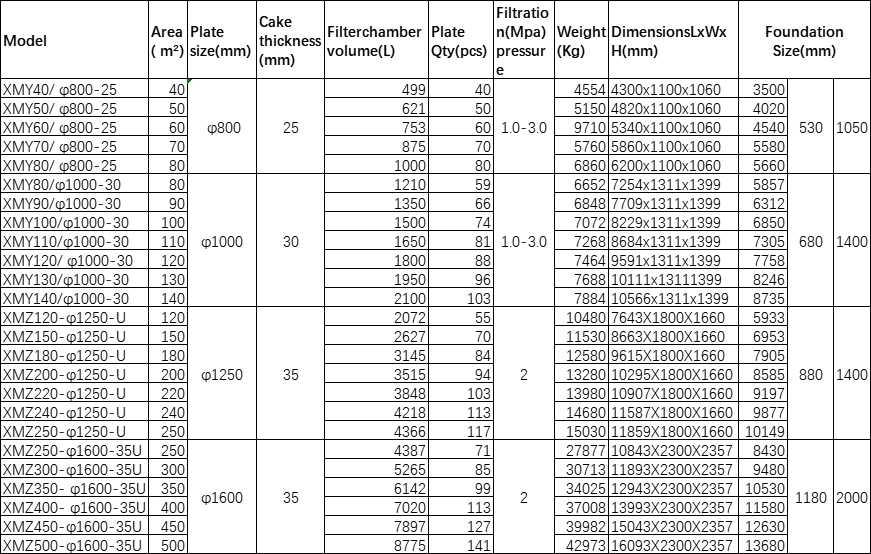

Product Specifications:
FAQ:
1. What is the advantage of the circular filter plate design?
The circular filter plate has better mechanical strength and pressure resistance, making it suitable for high-pressure filtration conditions and difficult-to-filter slurry materials.
2. What is the difference between round filter press and chamber filter press?
A chamber filter press is widely used for general sludge dewatering and slurry filtration. A round filter press is more suitable for high-pressure filtration of mineral slurry, ceramic slurry, clay, and similar materials requiring deeper dewatering.
3. Can the round filter press reduce cake moisture?
Yes. With high-pressure filtration, the round filter press can help reduce cake moisture for suitable materials. The final moisture depends on material type, solid content, feeding pressure, filter cloth, and filtration time.
4. What information is needed for model selection?
Please provide material name, solid content, processing capacity, working hours per day, feeding pressure, target cake moisture, and site conditions. If available, material photos or test reports are also helpful.
5. Is the round filter press automatic?
Both automatic and manual operation modes are available. Quick-opening design and automatic plate pulling can be selected according to project requirements.
