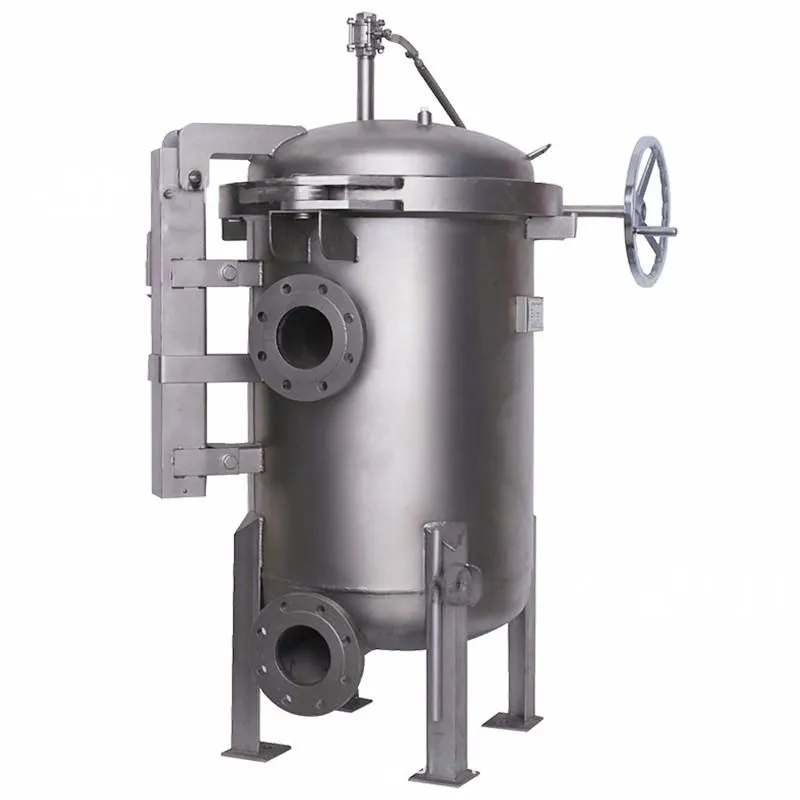

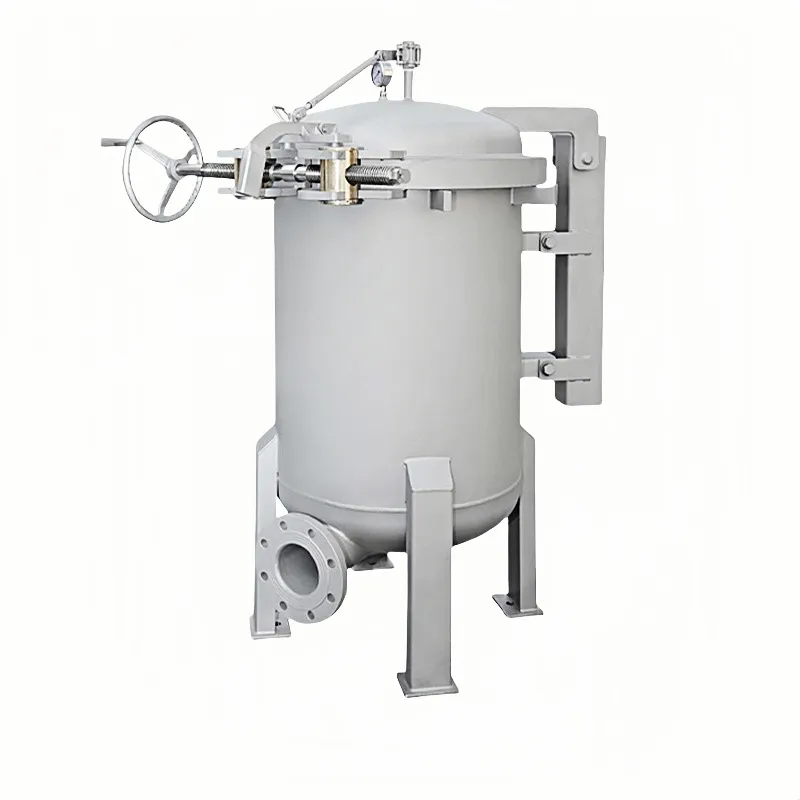

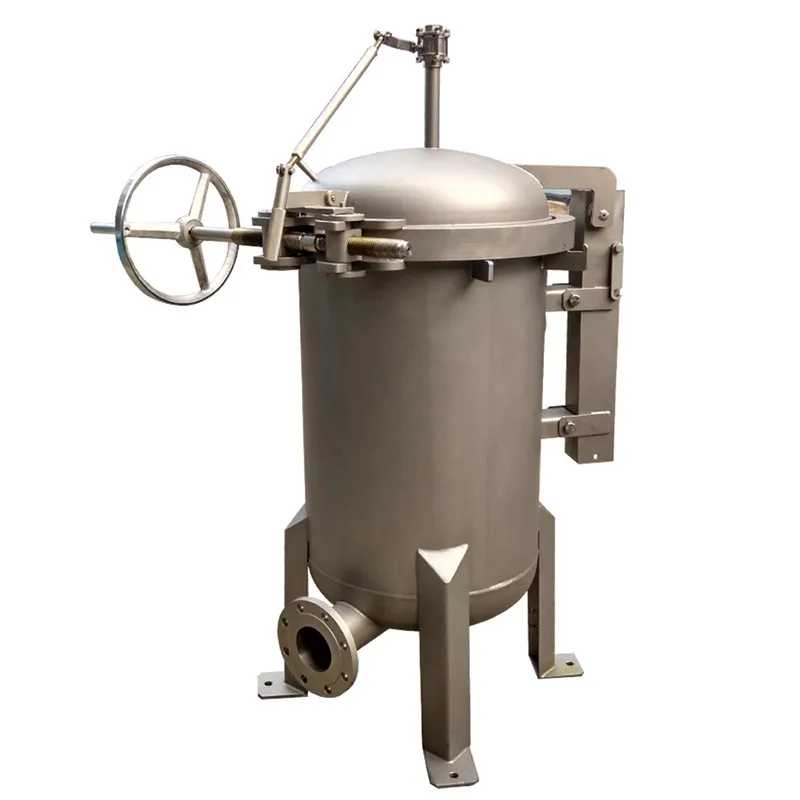

Quick opening bag filter

Product features The KDL quick-opening bag filter is a new type of bag filter with convenient operation and innovative design, featuring a rational structure, good sealing performance, high-pressure resistance, and an aesthetically pleasing appearance, among other advantages. The main components of the quick opening bag filter include a flip-top cover, a spring gravity balance mechanism, a h

Design advantage

1. Using a stainless steel elastic hoop instead of the traditional lifting ring bolt compression device, the filter top cover switch time is shortened to less than half a minute, which saves 30-50 times of operation time than the ordinary bag machine and greatly improves the working efficiency.
2. The maximum pressure can reach 1.2Moa, and the design pressure value is more than 20% higher than that of similar products.
3. The spring gravity balance device replaces the traditional manual rocker arm, which can be turned up and down with one finger.

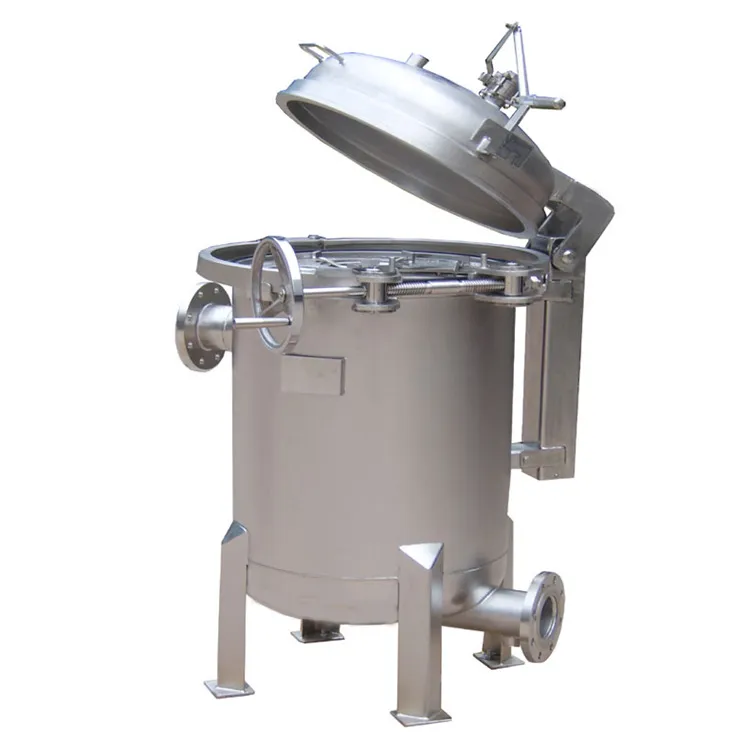

4. The opening angle of the top cover is 105 degrees, and there is a locking device after the top cover is lowered.
Reasonable design of the filter will not produce side over, dumping, or the top cover down after not easy to buckle phenomenon.
5. Each filter bag is designed with a separate locking device to ensure a good seal between the filter bag and the filter.
6. If the built-in float can make it more convenient to replace the filter bag, the built-in magnetic bar can absorb metal particles.
7. It is applicable to the working conditions of frequently changing the filter bag.
