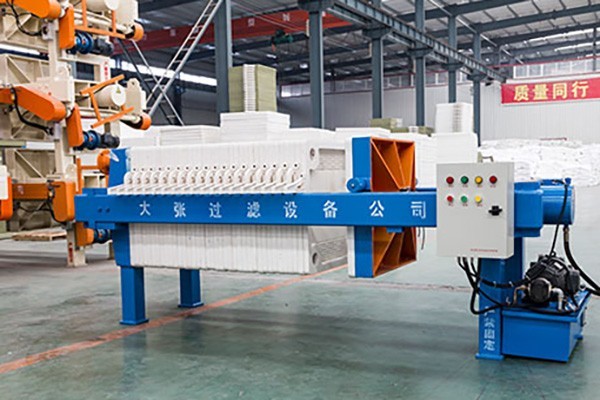

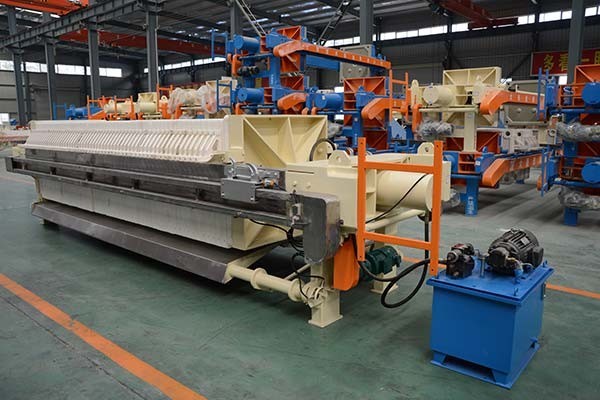

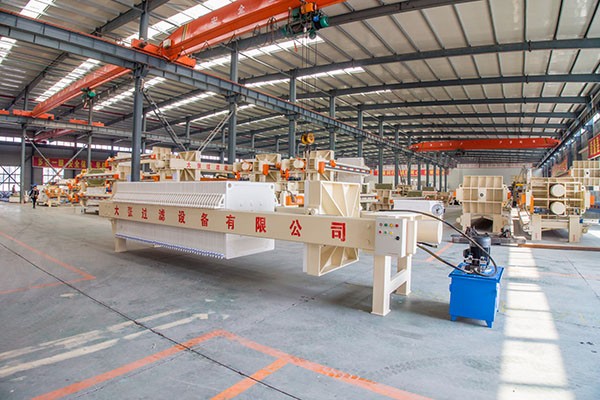

Plate And Frame Filter Press

Filter area（m²）30-1000
Filter Plate Specifications870、1000、1250、1500、2000
Working MethodManual
Panel pulling methodQuick Open, etc.
Filtering pressure（MPa）0.6
Drainage Methods Visible/Invisible

Advantages:
1.It can be used for ultra-filtration by using the filter paper or paperboard.
2. Various filtering media for options: filter clothes or filter paper, paperboard
3. Various filter plate materials for choice: PP, Cast Iron, Stainless Steel.
Applications:
Slurry dewatering for food, wine, beverage, juice, medicine, oil, chemicals, etc.

The plate frame filter press is the most traditional filter press type. Actually, it uses a plate and frame installed alternatively on the filter press structure. For this filter press type, today it's mainly used for fine filtration.

1）For the plate frame filter press, the hollow frames are put between two plates to form a filter chamber. Generally, for the filter presses, the filter medium is the filter cloth. But for the plate frame filter press, the filter plate is flat, so besides the filter cloth, it can also use the filter paper to realize fine filtration or even ultra-filtration.
2）The plate frame filter press cannot bear the higher filtering pressure, because it has no supporting points like chamber filter plates. And it can only discharge cakes manually, so the model is normally not very big. The max filter plate size is 1m. It's mainly for the laboratory and fine chemical industries.
3)Our plate frame filter press has various closing types: manual jack, manual hydraulic, electrical hydraulic, etc. And plate frame material can be customized according to your material demands, such as PP, stainless steel, or cast iron materials. Please contact us for more info on plate filter presses so that we can get the most suitable offer.
